SKU Number: 1069010
Stock accurate as of 29th October 2024 11:00pm
Catalogue Page 226
2 years warranty when registered. For collection or our own van delivery only.

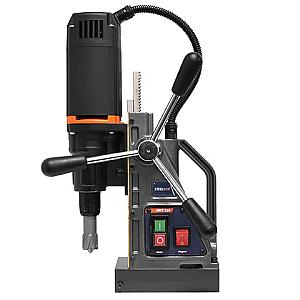

Combining light weight and portability with a high power allday broaching capability up to 60mm diameter is combined with a forward reverse, variable speed motor that will tap holes up to M20 diameter. Fully rated for reaming, countersinking, and tapping. Advanced British electromagnets provide enhanced magnet hold for exceptional safety and stability.
Supplied with handles, heavy duty metal sliding guard system, MT2 broaching arbor, VersaDrive arbor, heavy duty, waterproof, shock-resistant site case, gravity fed coolant system and VersaDrive Quick Change Arbor.
Built in the UK
CUTTER SIZE RANGE: | 12 - 60mm TCT |
MAX CUTTER CAPACITY: | 60mm TCT |
TWIST DRILL CAPACITY: | 20mm |
MAX TAP CAPACITY: | M20 |
MAX COUNTERSINKING: | 40mm |
LENGTH: | 315mm |
WIDTH (Inc Handles): | 220mm |
HEIGHT (Min-Max): | 385 - 605mm |
STROKE: | 220mm |
WEIGHT: | 18 kg |
MAGNET (L X W): | 200 x 100mm |
MAGNETIC ADHESION: | 1750 kgs |
MOTOR POWER: | 1150w |
TOTAL POWER: | 1270w |
SPEED RPM (No Load): | 100 - 250 / 180 - 450 |
SPINDLE: | MT2 |
ARBOR: | 19,05 mm (¾”) Weldon |
TAKES CHUCK: | Yes |
COOLANT SYSTEM: | Gravity Oil Fed |
WARRANTY: | 2 Year |
